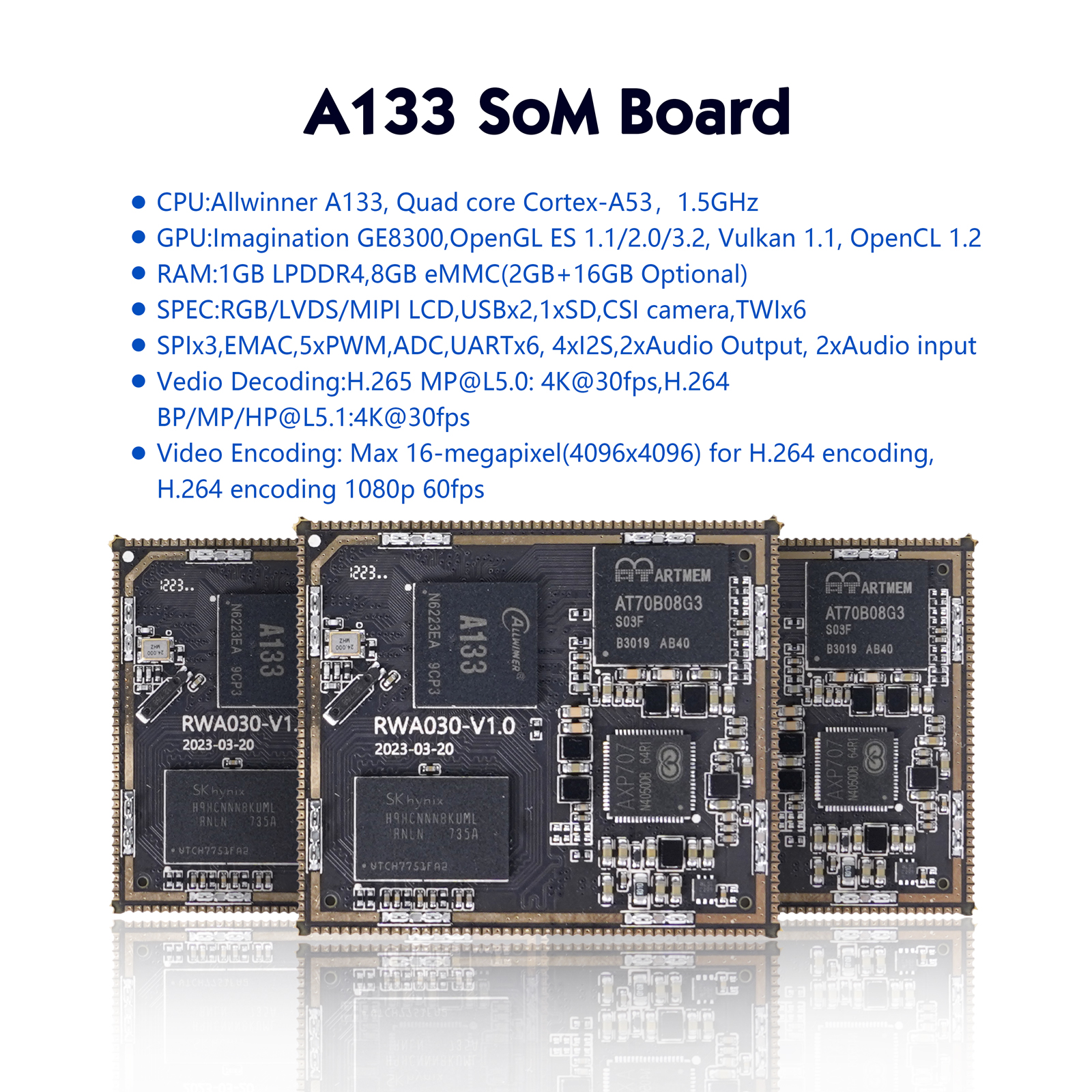

| Product Description |
| CPU | •Allwinner A133, Quad cortex A53@1.6GHz |
| •32 KB L1 Instruction cache and 32 KB L1 data cache for per CPU,512 KB L2 cache shared |
| •Power-efficient ARM v8 architecture |
| GPU | •Imagination GE8300 |
| •Support OpenGL ES 1.1/2.0/3.2, Vulkan 1.1, OpenCL 1.2 |
| ROM | •Support 8bit data bus, Support 8GB, 16GB-64GB Optional |
| •eMMC V5.1 |
| •Support boot from eMMC |
| RAM | •Support LPDDR4x |
| •Support 32bit databus, default 1GB, max 4GB |
| •Support dynamic frequency range |
| Video Decoding | •SupportH.264 and H.265 decoding |
| • H.265, MP Level 5.0, max 4096*2304@30fps |
| • H.264, BP/MP/HP Level 5.1, max 4096*2304@30fps |
| Video Encoding | •Support H.264 encoding |
| •Max 16-megapixel 4096*4096 resolution for H.264 encoding |
| •H.264 encoding performance of 1080p 60fps |
| •MJPED encoding performance of 1080p 30fps |
| Camera | •Support two MIPI CSI (one for 4-lane, the other for 2-lane) |
| •Support image crop function |
| •Support MIPI Version 1.0, up to 1.0 Gbps/lane |
| Display | •Support RGB888, RGB666 RGB656, RGB with DE/SYNC 1920*1200 |
| •Serial RGB/dummy RGB, up to 800*480 60fps |
| •LVDS interface with dual link, 1920*1200 60fps |
| •Support one MIPI 4lane, 1920*1200 60fps |
| Touch Panel | •I2C touch panel |
| •Support I2C resistive touch panel |
| Audio | •Two Audio DAC channels, two audio ADC channels |
| •Two audio output one headphone and one differntial line output |
| •Four I2S/PCM interface, I2S mode support 8 channels 32bit/192k |
| SD/MMC | •Support SD V3.0,support SDIO 3.0 |
| •Support 4/8 bit data bus |
| USB | •Total 2xUSB, 1xUSB 2.0 OTG,1xUSB host |
| •Support high speed 480-Mbps, full speed 12-Mbps, low speed 1.5Mbps |
| SPI | •Three independent SPI controller |
| •Master and slave configurable |
| TWI | •6 TWIs, Support 7bits and 10bits address mode |
| •Support fast speed mode(Max 400Kbps) |
| UART | •6xUARTs |
| •Uart0 used for debug |
| •UART0 2-wire; UART1-4: 4wire |
| •Support 5bit, to 8bit serial data transmit or receive |
| EMAC | •Support 10/100/1000 Mbit/s data transfer rates |
| •Support RMII/RGMII PHY interface |
| •Compliant with IEEE 802.3-2002 standard |
| LRADC | •1xADC, 6bit resolution |
| •2KHz sampling frequency |
| PWM | •5xPWM,Minimum resolution:1/65536 |
| •Output frequency range 0-24MHz/100MHz |
| Security | •Support AES, XTS-AES, DES, TDES, SM4 |
| •Support 128/192/256-bit key for AES |
| •256-bit, 512-bit key for XTS-AES |

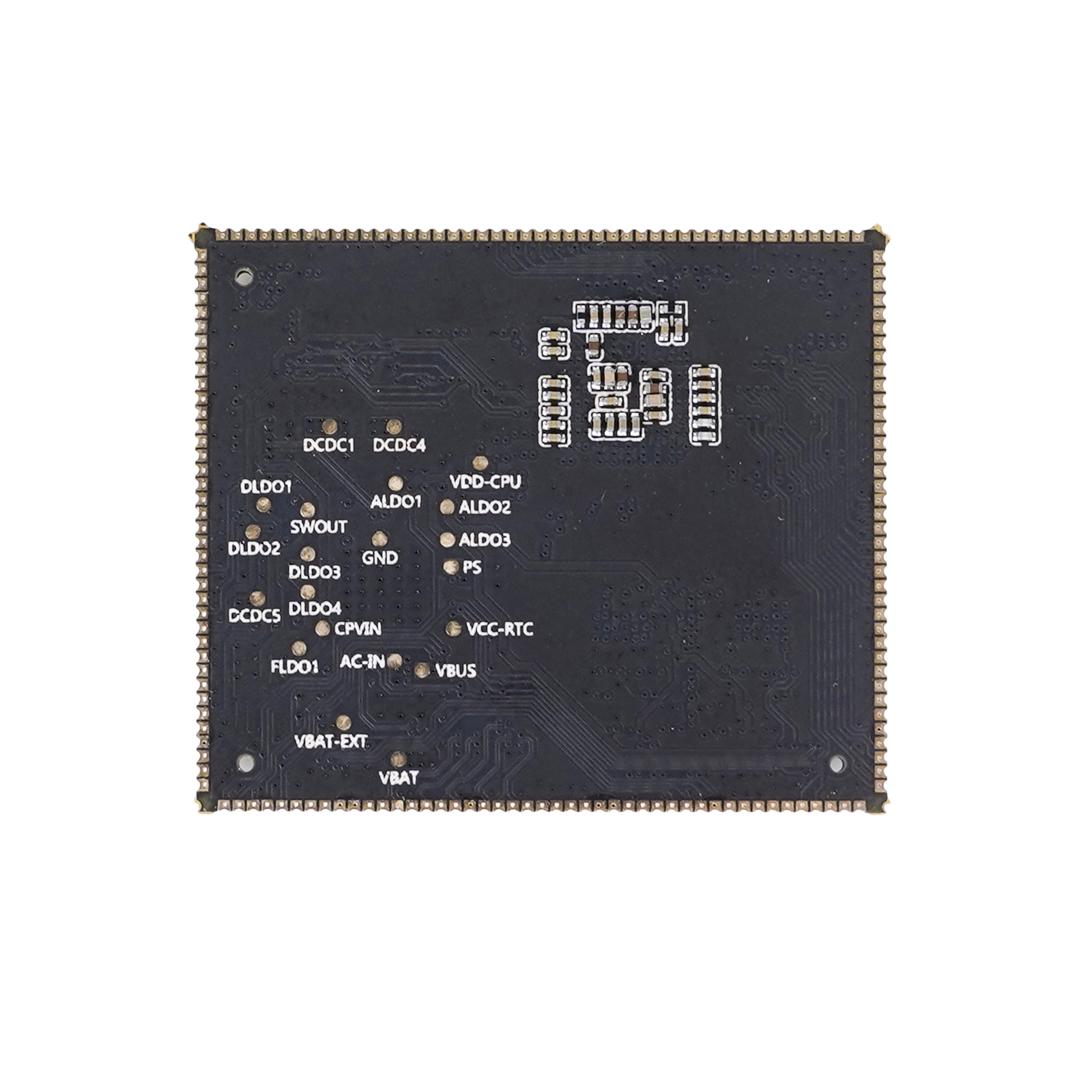

| Power | •Support 3.5V-7V input |
| •On board AXP707 PMU, QFN68 |
| •Support 2xDCDC, DC-DC1 1.6~3.4V@1.5A adjustable;DC-DC2 0.5-2.4V@2.5A adjustable |
| •Support 3xLDOs, DLDO2 0.7~3.4V@400mA;DLDO4 0.7~3.3V@0.5A;ELDO1 0.7~1.9V@0.4A; |
| •Vbus/ACIN 3.5V-7V, Vtrgt 4.1-4.35V |
| OS | •Android 10, 13 SDK, Ubuntu OS; Tina Linux openWRT SDK |
| •Kernel: Linux 4.9 |
| L*W*H | 48*41*3.7mm |
